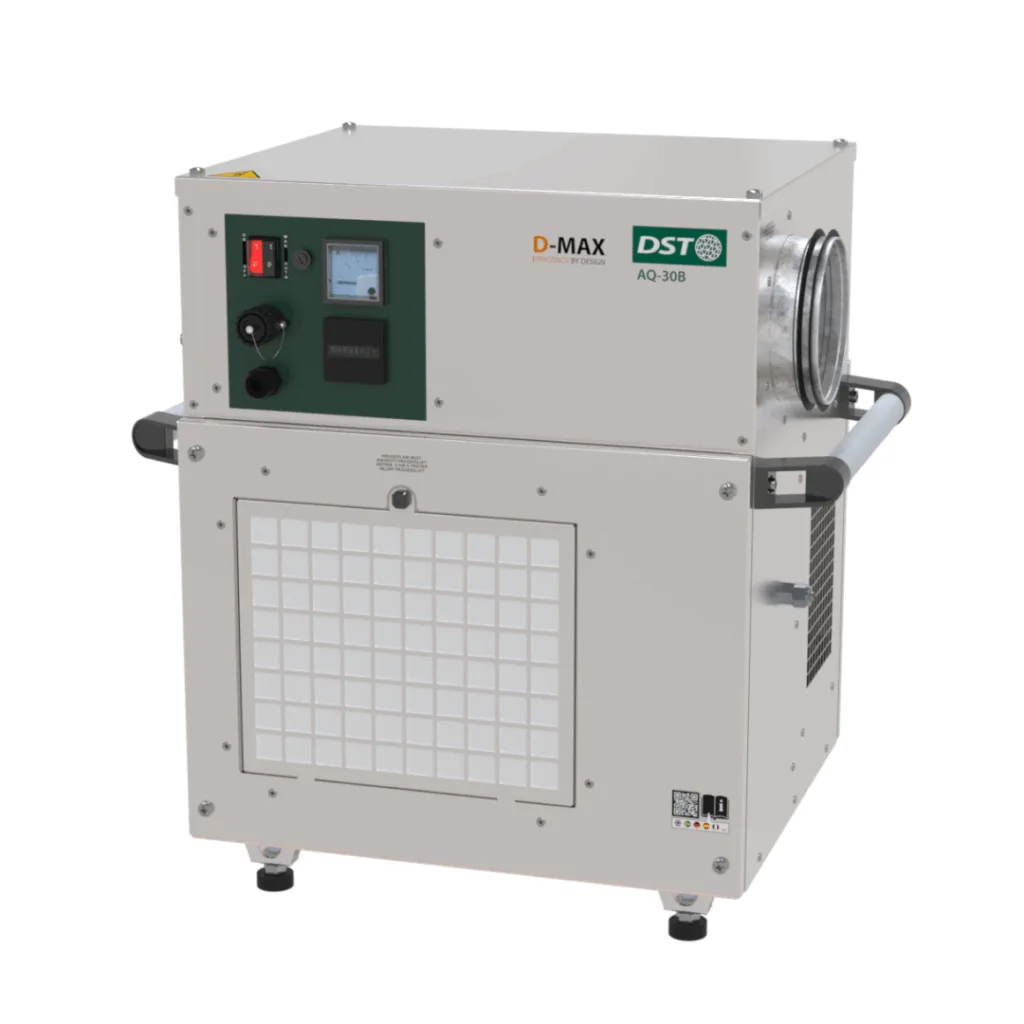

AQUASORB AQ-30B/31B/31L
THE AQ SERIE IS UNIQUE WITH AN AIR-COOLED CONDENSER FOR HIGH CAPACITIES
These unit’s condensates out the water instead of having a wet airflow, which is important for some applications. For example, if the wet air is difficult to duct too outdoor or that all the heat put is collected into the unit in the dehumidified room. On water damage restoration application, it is also important as it makes it possible to install a lot of units during a short time when you have larger jobs. If there is no floor drain available, the units have a condensate pump which easy lead away excess water to a sink. Their chassis are in stainless steel, the process fan has a EC motor and is the same for both the dry air and the cooling air. The fan is protected by a thermostat that is located between the fan and the heater. The heat exchanger (wet air/cooling air) is made of aluminium with silicone sealing which gives it a high maximum working temperature. DST offers multiple solutions for control of our units.
Capacity
Capacity: 0.85 – 1.55kg/h* / Dry air flow: 330 – 370m3/h
*Dehumidifying capacity at 20°C / 60%RH
Sorption Technology
Aquasorb
Se alla
Aquasorb basically functions as a Consorb but the wet air flow is condensed in an air-chilled condenser instead of being led out. Thanks to the common fan for dry air and cool air, all energy is accumulated in the dry air. Aquasorb has a high dry airflow, which improves the drying effect.
